Body material: ABS
Reflector type: Double side/Single side
Lens Material: PMMA
Colors: White, Red, Yellow, Green, Blue
Size: 116*82*18mm

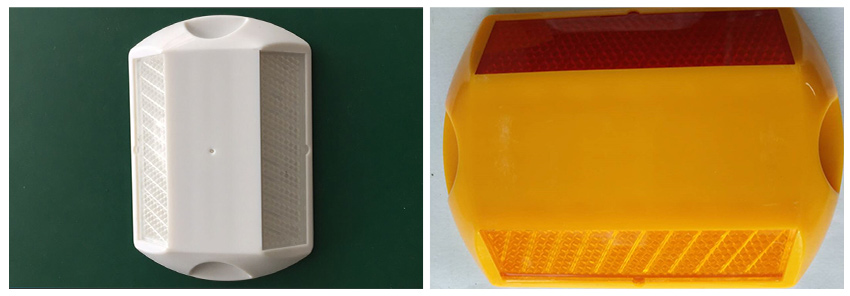

The cat’s eye road stud is what’s called a retroreflective safety device – it reflects light back to the source (i.e. your headlights). Cat eyes road stud are a safety and visibility device used on roads. These cat eyes road studs offer excellent visibility to oncoming motorists via the double sided reflective material that reflects car headlights.

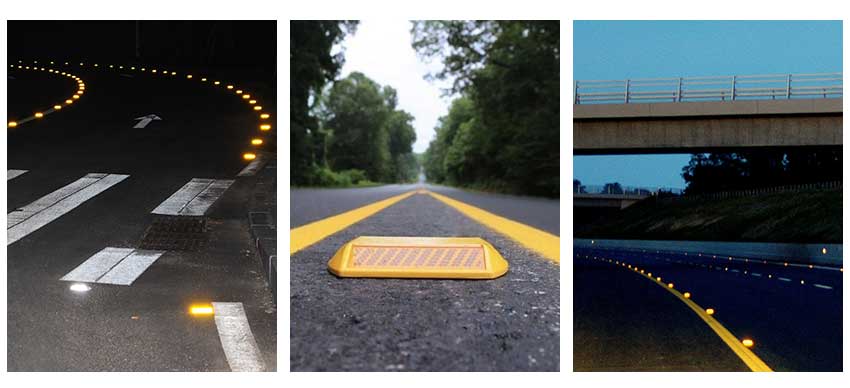

Cat eye road studs are one of raised pavement markers. Amber cat eye road studs on motorway is used for dividing the road boundary,for safety,reducing the accidents,made from aluminium alloy attached with the reflective sheet made from the acrylic plastic sheet.This acrylic is a reflective prism glass style and available 1 or 2 sides on road stud. In addition,there will be thin layer of the coated glass in order to enhance the reflective index during night time.
The specifications of motorway cat eye road studs:
| Body material | ABS |
| Size | 116*82*18mm |
| Lens Material | PMMA |
| Reflector type: | Double side/Single side |
| Color | Red, Yellow, Green, Blue, White |
| Packing | 50pcs/carton |
| Carton size | 38*36*23cm |
| Load capacity | 15Tons |
Whats the different color amber cat eye road studs mean on the motorway?
Red cat eye road studs- mark the left edge of the road.
White cat eye road studs- mark the lanes or the middle of the road.
Amber cat eye road studs- mark the central reservation of a dual carriageway or motorway.
Green cat eye road studs- mark the edge of the main carriageway at lay-bys and slip roads
Body material: Aluminum(GB-ADC12)+PC(Japan Brand)
Power supply: USA Brand High Efficient Solar Panel
Battery: NI-MH1.2V/600MAH; Lithium battery3.2V/500MAH(Made in Japan);
Resistance: >30T
LED Color: White, Yellow, Blue, Red, Green
Size: L125mm*W107mm*H26+50mm
Body material: Casting Aluminium alloy +PC
Power supply: 5V/80MAH Mono crystalline silicon
Battery: Lithium battery3.2V/1000MAH
Resistance: >40T(can be installed in the middle of road)
LED Color: White, Yellow, Blue, Red, Green
Size: φ125*50mm
Body material: PC
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NIMH 600MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: φ117*23mm
