Cat eye road stud is also a kind of reflective road stud. In the past, the cat eye road stud is a round transparent glass body, which gathers light through the transparent glass sphere, and then reflects light by the reflection device on the base. This design makes the reflective area of the cat eye road stud larger, the reflective force stronger and the reflective light intensity higher.
The embedded part of cat eye road stud is a disc base with a diameter of 8 cm at the lower end and a diameter of 10 cm at the upper end and a thickness of about 2.5 cm. The protruding part in the middle is a semicircular sphere with a diameter of 6 cm and a height of about 2 cm. Because this kind of road stud looks like cat eye, it is called cat eye road stud.
solar-road-stud
The night before yesterday, the reporter of southeast express came to a viaduct and saw that many municipal workers were installing cat eye road studs on the roads on both sides of the viaduct. When installing cat eye road studs, workers need to chisel a round hole with a diameter of about 100 mm and a depth of about 24 mm, and remove the asphalt concrete remaining in the hole. Then inject proper amount of asphalt glue into the hole, place the cat eye road stud in the hole and make it rotate. After installation, the cat eye road stud looks like a raised luminous ball on the road at night.
solar-road-stud

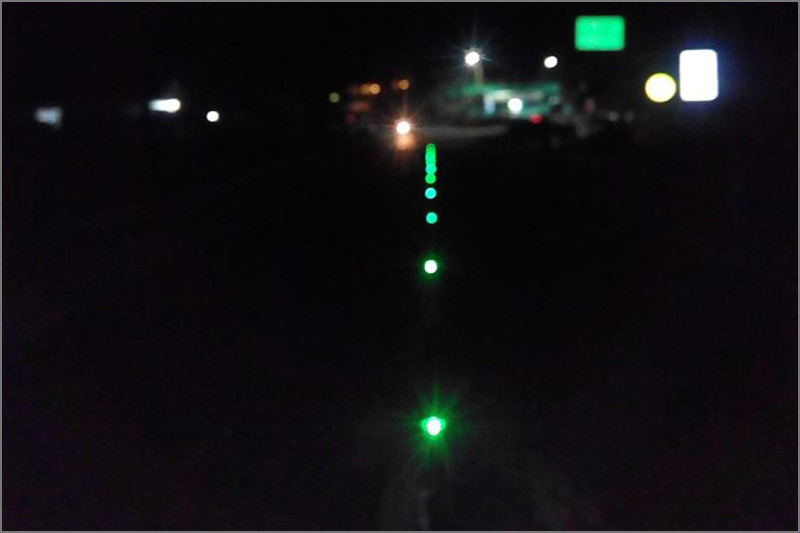

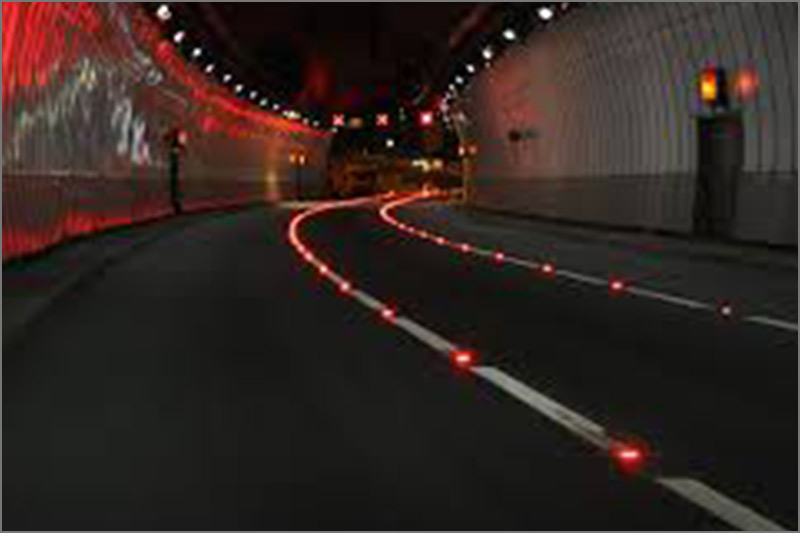

Such a cat eye road stud device not only makes the road at night more vivid and full of vitality, and strengthens the aesthetic feeling of urban roads, but also can improve the brightness of the road, so that drivers can drive more safely at night. Commuters are also full of praise for such cat eye road studs.
