Home » Products » Plastic Cat Eye Road Stud Reflector NK-1002

Plastic Cat Eye Road Stud Reflector NK-1002

Body material: ABS
Filling: Epoxy+Quartz
Lens Material: PMMA
Colors: White, Red, Yellow, Green, Blue
Size: 100*100*20mm

Product Description

The cat’s eye road stud is what’s called a retroreflective safety device – it reflects light back to the source (i.e. your headlights). Cat eyes road stud are a safety and visibility device used on roads. These cat eyes road studs offer excellent visibility to oncoming motorists via the double sided reflective material that reflects car headlights.

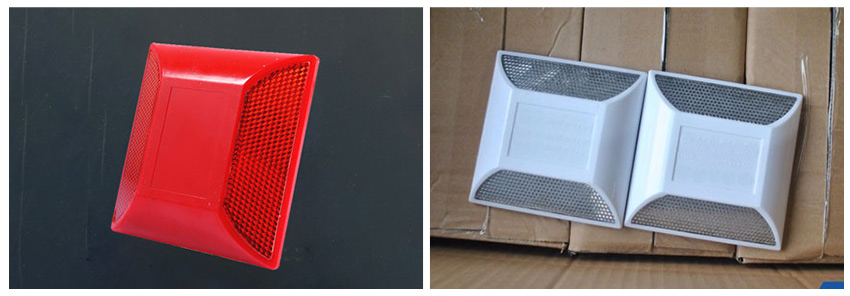

Plastic Cat Eye Road Stud Reflector
Plastic Cat Eye Road Stud Reflector



Cat eye road stud are one of raised pavement markers. Cat eye road stud reflectors is used for dividing the road boundary,for safety,reducing the accidents,made from aluminium alloy attached with the reflective sheet made from the acrylic plastic sheet.This acrylic is a reflective prism glass style and available 1 or 2 sides on road stud. In addition,there will be thin layer of the coated glass in order to enhance the reflective index during night time.



The specifications of cat eye road stud reflectors :

Color Red, Yellow, Green, Blue, White
Lens Material PMMA
Body Material Plastic
Filling Epoxy+Quartz Sand
Size 100*100*20mm
Temperature -40~60°C
Load capacity 5 T

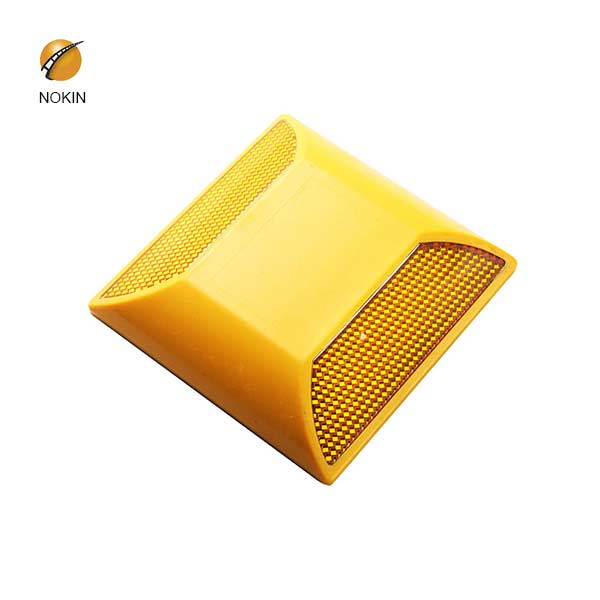

Amber-Reflective-Pavement-Markers-4

Whats the different color cat eye road stud reflectors mean on the motorway?



Red cat eye road studs- mark the left edge of the road.

White cat eye road studs- mark the lanes or the middle of the road.

Amber cat eye road studsstuds- mark the central reservation of a dual carriageway or motorway.

Green cat eye road studs- mark the edge of the main carriageway at lay-bys and slip roads

Green/yellow cat eye road studs- studs indicate temporary adjustments to lane layouts, e.g. where road works are taking place.
